Clockface battery indicators

[vsarela]

I'm working on my first two clockfaces, and for the most part I got things working, but I'm having trouble with the battery indicators. In the first clockface, I have the battery percentage numbers shown as images (to use a custom font), but I can't get them to change when I adjust the battery level in the simulator. In the second one, I'd like to have the battery indicator as a rotating line, like an analog meter, but I can't get it to move. I'm not sure what kind of code I should use in app/index.js – I've looked at other clockfaces on github for reference but couldn't find anything that works. What kind of code would be best here?

[Guy_]

Hi @vsarela - you may be new to Fitbit Studio, and may be missed that it is being discontinued - see Important: Streamlining Fitbit’s Developer Tools

See the Power API this should help you show change of battery level in your clock face.

[vsarela]

I saw the news, that's why I'm trying to get these done now so I can use them.

I've read the Power API page, and it works for plain text, but I don't know how to adapt it to images or lines. I don't really know much Javascript.

[Guy_]

@vsarela  - try

<image id="baticon" href="high.png" x="5%" y="5%" width="32" height="32" />

if ( battery.chargeLevel <= 25) baticon.href="low.png";

you can use your images for any levels.

[vsarela]

What about numeric values from 0 to 100?

Something like the date code:

let date1 = document.getElementById("date1");
let date2 = document.getElementById("date2");

function setDate(val) {
drawDigit(Math.floor(val / 10), date1);
drawDigit(Math.floor(val % 10), date2);
}

function drawDigit(val, place) {
place.image = `img/${val}.png`;
}

[kozm0naut]

I threw this together, I hope it helps.

In your .view file, add:

  <defs>
    <symbol id="sym_battery">
      <rect id="battery-nub" x="0%" y="25%" width="8" height="50%" fill="white"/>
      <rect id="battery-outer" x="0%+8" y="0%" width="100%-8" height="100%" fill="white"/>
      <rect id="battery-inner" x="0%+12" y="0%+4" width="100%-16" height="100%-8" fill="black"/>
      <rect id="battery-level" x="0%+16" y="0%+8" width="100%-24" height="100%-16" fill="lime"/>
    </symbol>
  </defs>
  <use href="#sym_battery" id="battery" x="30" y="30" width="70" height="30"/>

(or if you already have a <defs> section, add the symbol there. Set the x, y, width and height of the <use> element as you wish)

Next, create a folder called display and add a file there called battery.js with the following:

import {battery} from "power";

function setBatteryLevel(ele_batteryLevel, maxWidth) {
  let width = (battery.chargeLevel / 100.0) * maxWidth;
  ele_batteryLevel.width = width;
}

export {setBatteryLevel};

Finally, we'll add some code to index.js to make use of these:

//in imports
import {setBatteryLevel} from "../display/battery.js";
//...

const ele_battery = document.getElementById("battery");
const ele_batteryLevel = ele_battery.getElementById("battery-level");

setBatteryLevel(ele_batteryLevel, (ele_battery.width - 24));

And that should get you going.

==== In addition ====

You can hard-code alternate colors within the <use> element using <set> elements, such as:

  <use href="#sym_battery" id="battery" x="30" y="30" width="70" height="30">
    <set href="#battery-nub" attributeName="fill" to="orange"/>
    <set href="#battery-outer" attributeName="fill" to="orange"/>
    <set href="#battery-level" attributeName="fill" to="cyan"/>
  </use>

And/or you can dynamically modify e.g. the battery-fill color based on battery level by adding something along these lines in the setBatteryLevel function:

function setBatteryLevel(ele_batteryLevel, maxWidth) {
  let width = (battery.chargeLevel / 100.0) * maxWidth;
  ele_batteryLevel.width = width;

  //dynamically set battery-level fill color
  if (battery.chargeLevel < 25) {
    ele_batteryLevel.style.fill = "red";
  } else if (battery.chargeLevel < 50) {
    ele_batteryLevel.style.fill = "yellow";
  }
}

[SarahBass]

This is a great resource for beginners if you haven't used it yet: Fitbit Github  .  You might have fun contributing to that github once you make a clock or app.

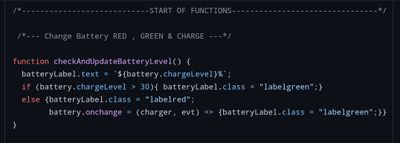

Here's the battery function I use. My battery is just text, so I'm using the javascript function to change the text.class in my .css file to green font or red font. The key is to call the function from INSIDE 🙌  the clock.ontick event so that it updates every second. All functions should be called inside the .ontick event. You must also set the clock.granularity to seconds or it will default call your functions every minute (which is kind of slow)

Hope that helps.
