Track calories burned during exercise

[fitburner]

Hi everyone.

I have purchased FitBit Inspire 3 to be used in a personal/university project of mine.

The goal, as mentioned in the title is to track calories burned during exercise.

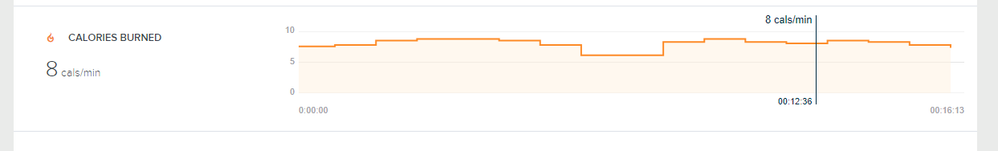

After I complete an exercise and it appears on my FitBit dashboard, when I click on it, I see the following chart, which is exactly what I want to recreate using either exported data from FitBit or a response from an API endpoint.

In this chart we see cals/min values on a per second basis.

I have tried to export FitBit data through Google Takeout, and also export the exercise in TCX format. No such data available, not that I could find at least.
Browsing through the API, I believe the most relevant endpoint for my query would be "Get Activity Intraday by Interval", but from what I see in the Documentation, that would at best take me to minute-level data, not second-level, as we see in the chart in the dashboard.

So, to wrap this up, the short question is, how would one go about recreating a chart as the one above?

Many thanks!


[GordonFitbit]

Hi @fitburner

You are correct that the Activity Intraday endpoint will provide you with the calories / min data to recreate the chart.  If you notice in the chart, the calories burned over a period of a single minute stays constant.   The slider bar is showing seconds but the data over a single minute is still constant.  Calories / second is not available.  If calories / second were available, you would see the calories burned change over the length of a single minute.

Best,

Gordon

[fitburner]

Hi @GordonFitbit ,

Many thanks for the quick response.

I've played around a bit with the particular API endpoint, and indeed, I can recreate the chart as envisioned.

I have another question, for which I suspect what the correct answer is, but also wanted to ask your for confirmation.

Lets say that among all other datapoints, I get the following (it's not actual data, I just use random values):

time: 16:41:00, value (calories): 10.57897 (lets call this number A)

The question is, does number A correspond to calories burnt from 16:40:01 to 16:41:00 or from 16:41:00 to 16:41:59?

Many thanks for your consideration

[GordonFitbit]

Hi @fitburner

From what I can tell, it looks like the calorie burn value comes from the previous period.   So, in your example 10.57897 calories were burned from 16:40:01 - 16:41:00.

Gordon
